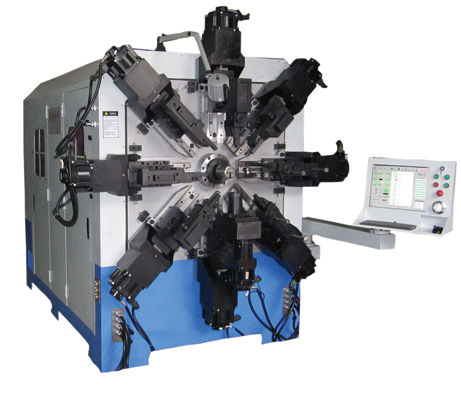

    XD-1260WZ Camless Spring Machine

    Introduction：
    Xinding spring machinery, Springs machine, XD-1260WZ Spring Machine, 2.5-6.0mm springs making.

    GET A QUOTE

    Product Advantage



    Special camless design equipped with free arm technolgy that enables our series of spring machines to easily produce all kinds of difficult springs that is 30% or more efficient than traditional cam type spring former.

    Advance attachments such as rotary wire, spinner, and the x-y free arm can be optionally equipped to the machine.
    Intuitive graphics user interface.
    Characteristic is due to the employment of a bullet proof software engineering methodology. This makes learning and configuring highly complex springs a simple task.
    Commonly use in the industries of: automobile, wire forms, entertainment and fitness.

    camless spring machine





    Technical Parameters



    Model:

    XD-1260WZ

    Wire diameter:

    φ2.5～6.0 mm

    Axes:

    12 axes

    Maximum Outside Diameter:

    110mm

    Maximum Feeding Length:

    unlimited

    Maximum Manufacture Speed:

    100pcs/min

    Feed Speed:

    54m/min

    Memory Number:

    1000pcs

    Display language:

    Chinese&English

    Total Motor Consumption:

    50kw

    Power AC:

    3-Phase 380v

    Dimension (L*D*H):

    3000X2100X2200mm

    Wooden Case Dimension:

    3100x2500x2500mm

    Machine Weight:

    5000Kg

    Gross Weight:

    6000Kg





    Sample Display



    This CNC spring machine produce various ultra-precision irregular springs, compression springs, pulling springs, dual-torsion spring, flat line(spiral power spring)and line molding spring etc. xinding spring sample
    spring machine sample

    Video



    Product Details



    1. Use servo control system to save energy 30-50 %.
    2. repeatable positioning accuracy up to±0.01mm.
    3. Low failure rate,automatic alarm and fault indication,one-button reset function.
    4. Adopting an integral frame structure, high strength, low distortion and durability.
    5. Innovative design of great flexibility.
    6. Patented and innovative time-line-basis spring program software.

    Use of famous brand components, ensures the stability of spring forming control system.
