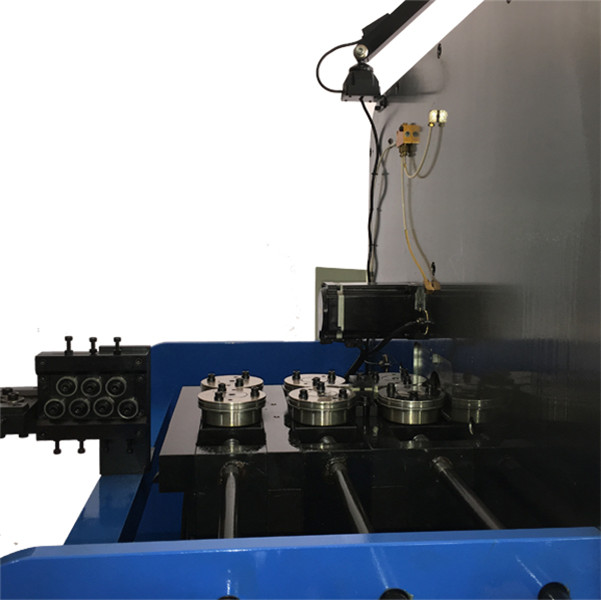

    • 20e spring machine 20e spring machine

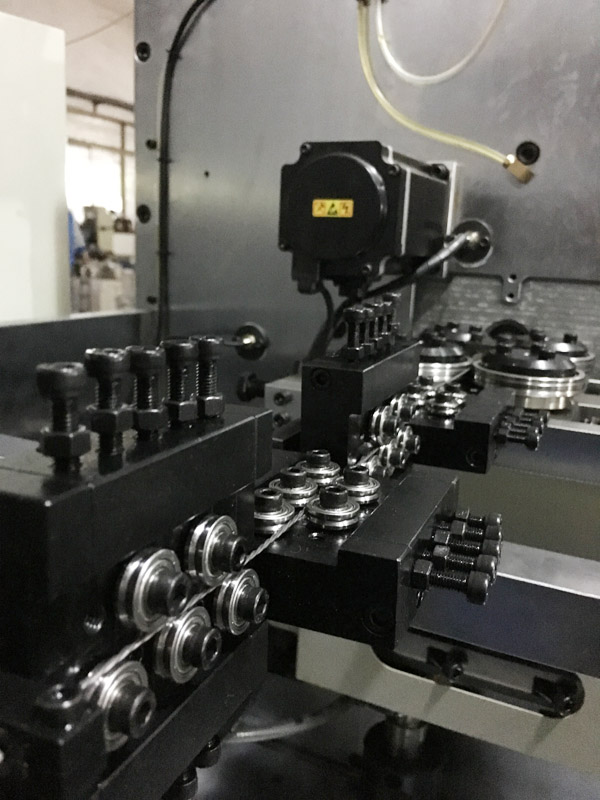

    straightening wire feeder straightening wire feeder
    spring-machine-parts spring-machine-parts

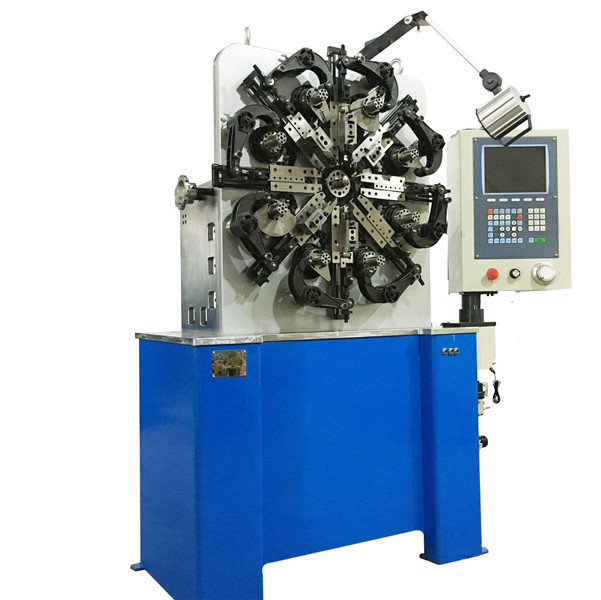

    XD-CNC20E Spring Machine

    Introduction：
    XinDing spring machinery, Springs machine, XD-CNC20E Spring Machine, 0.3-2.3mm springs making.

    GET A QUOTE

    Product Advantage



    1. XD-CNC20D spring machine consists of cam axis, wire feeding axis, rotation core and spinner axis.



    2. Computerized cam rotation system can be set from 0.1-359.9°, every two wire feeding wheels constitutes of one group, totally two groups.
    3. XD-CNC20D  cnc spring machine is equipped with XinDing 3-4 axis spring machine controller. which can save 1000 file, Axis location, feeding data, production speed and production output are displayed on the screen.

    cnc20 spring machine

    Technical Parameters



    Model:

    XD-CNC20E

    Wire diameter:

    φ0.3～2.3mm

    Axes:

    3-4 axes

    Maximum Outside Diameter:

    40mm

    Maximum Feeding Length:

    unlimited

    Maximum Manufacture Speed:

    100pcs/min

    Feed Speed:

    200m/min

    Memory Number:

    1000pcs

    Wire Feed Servo Motor:

    2.7kw

    Cam Servo Motor:

    2.7kw

    Quin Servo Motor:

    0.75kw

    Power AC:

    3-phase 380v

    Dimensions (L*D*H):

    1400X550X1600mm

    Wooden Case Dimension:

    1600x600x1700mm

    Machine Weight:

    900kg

    Gross Weight:

    950kg





    Sample Display



    This CNC spring machine produce various ultra-precision irregular springs, compression springs, pulling springs, dual-torsion spring, flat line(spiral power spring)and line molding spring etc. china springs samples

    Video



    Product Details



    1. Use servo control system to save energy 30-50 %.
    2. repeatable positioning accuracy up to±0.01mm.
    3. Low failure rate,automatic alarm and fault indication,one-button reset function.
    4. Adopting an integral frame structure, high strength, low distortion and durability.
    5. Innovative design of great flexibility.
    6. Patented and innovative time-line-basis spring program software.

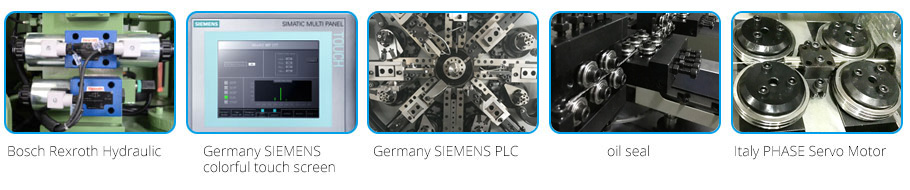

    Use of famous brand components, ensures the stability of spring forming control system.
