XD-208 Advantage

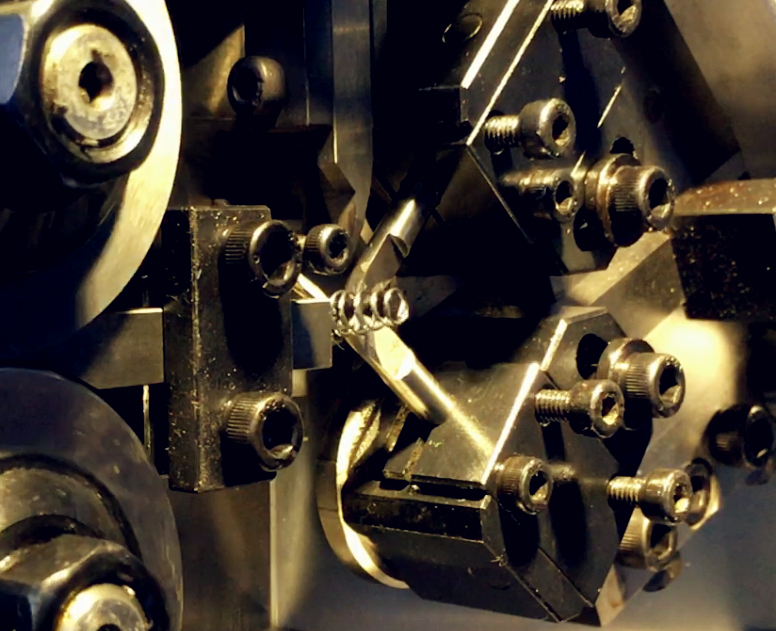

1. XD-208 compression spring machine is a 2/3 axis spring machine consisting of wire feeding axis and cam axis. each action from the machine are controlled by its CNC center.
2. The compression spring machine pitch, outside diameter and cutter are commanded by cam motor. while wire feeding is controlled by an independent motor.
3. The spring machine cutter can be adjusted inside and outside of the machine cabinet easily and flexibly.
4. Servo motion system and servo drive controlled, 5.7" screen display, easy to operate.
5. Cam can be moved clockwisely or anti-clockwisely, wire feed length can be changed while running the machine.
6. Computer automatically detect temperature of the motor and slow down running speed to protect the motor from overheating.
2. The compression spring machine pitch, outside diameter and cutter are commanded by cam motor. while wire feeding is controlled by an independent motor.
3. The spring machine cutter can be adjusted inside and outside of the machine cabinet easily and flexibly.
4. Servo motion system and servo drive controlled, 5.7" screen display, easy to operate.
5. Cam can be moved clockwisely or anti-clockwisely, wire feed length can be changed while running the machine.
6. Computer automatically detect temperature of the motor and slow down running speed to protect the motor from overheating.
7. Computer automatically decelerate according to the timing when the probe should be used.
8. Production speed can be increased or decreased at any time running the machine.
9. Optional accessories: Torsion device, oil seal device, pneumatic sensor device, spring length gauge.
Technical Parameters
| Model: | XD-208 |
| Wire diameter: | φ0.06～0.8mm |
| Axes: | 2-3 axes |
| Maximum Outside Diameter: | 20mm |
| Maximum Feeding Length: | unlimited |
| Maximum Manufacture Speed: | 550pcs/min |
| Feed Speed | 1200m/min |
| Memory Number: | 1000pcs |
| Wire Feed Servo Motor: | 1.0kw |
| Cam Servo Motor: | 1.0kw |
| Power AC: | 3-Phase 220v |
| Dimensions (L*D*H): | 650X550X1300mm |
| Wooden Case Dimensions | 1000x1050x1550mm |
| Machine Weight: | 400kg |
| Gross Weights | 450kg |
Sample Display
XD-208 compression spring machine can make various compression springs, precision 0.07mm spring, watch springs,wire coil, oil seal springs, battery springs, taper springs, double-taper springs, safe springs, clip spring as well as various simple wire molding.
Video
Product Details
1. Use servo control system to save energy 30-50 %.
2. repeatable positioning accuracy up to±0.01mm.
3. Low failure rate,automatic alarm and fault indication,one-button reset function.
4. Adopting an integral frame structure, high strength, low distortion and durability.
5. Innovative design of great flexibility.
6. Patented and innovative time-line-basis spring program software.
Use of famous brand components, ensures the stability of spring forming control system.
2. repeatable positioning accuracy up to±0.01mm.
3. Low failure rate,automatic alarm and fault indication,one-button reset function.
4. Adopting an integral frame structure, high strength, low distortion and durability.
5. Innovative design of great flexibility.
6. Patented and innovative time-line-basis spring program software.
Use of famous brand components, ensures the stability of spring forming control system.
