Spring Machine Details:
1. XD-208 compression spring machine is a 2-axis spring machine consisting of wire feeding axis and cam axis.
2. The compression spring machine pitch, outside diameter and cutter are driven by the cam motor. the wire feeding is controlled by an independent motor.
3. The spring machine cutter can be adjusted inside and outside of the cabinet easily and flexibly.
4. Servo motion system and servo drive control, 5.7" control panel, easy to operate.
5. Cam can be moved both clockwisely and anti-clockwisely, wire feed length can be change while running the machine.
6. Computer automatically detect temperature of the motor and slow down running speed to protect the motor from overheating.
7. Computer automatically decelerate when the probe should be used.
8. Production speed can be increased or decreased at any time of running the machine.
9. Optional accessories: torsion device, oil seal device, pneumatic sensor device, spring length gauge.
Product Range:
This compression spring machine make various compression springs, wire coil, oil seal springs, battery springs, taper springs, double-taper springs, safe springs, clip spring as well as simple wire forms.

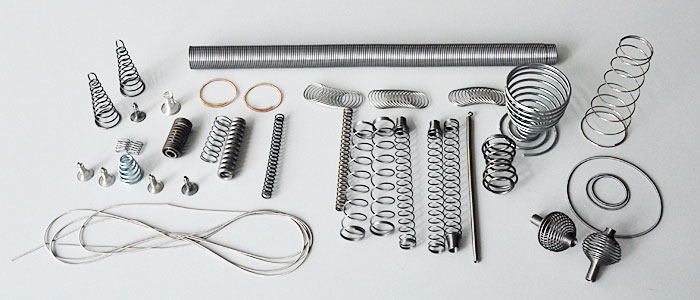

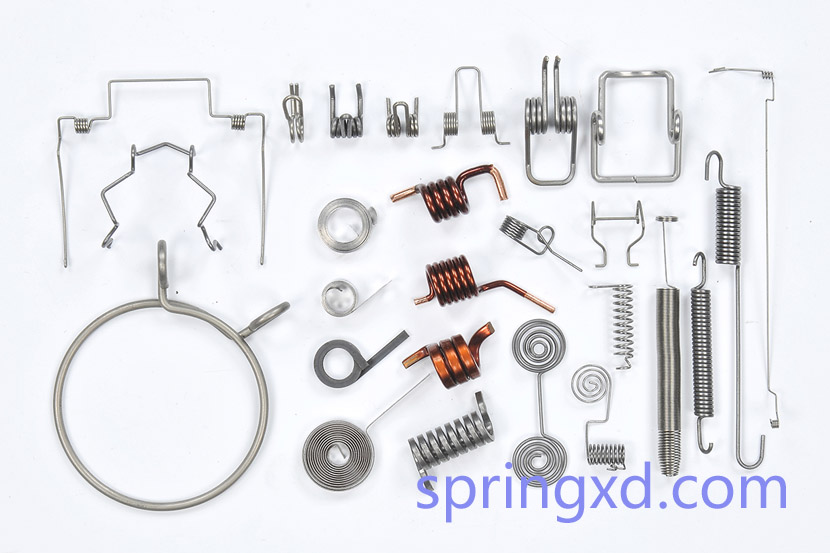

Spring Machine Sample:
Video
Technical Parameter:
| Model: | XD-208 |
| Wire diameter: | φ0.07～0.60mm |
| Axes: | 2 axes |
| Maximum Outside Diameter: | 20mm |
| Maximum Feeding Length: | unlimited |
| Maximum Manufacture Speed: | 550pcs/min |
| Feed Speed: | 300m/min |
| Memory Number: | 1000PCS |
| Wire Feed Servo Motor: | 1.0kw |
| Cam Servo Motor: | 1.0kw |
| Power AC: | 3-Phase 220v |
| Dimension (L*D*H): | 900X850X1600mm |
| Wooden Case Dimension: | 1000x1050x1750mm |
| Machine Weight: | 400kg |
| Gross Weight: | 450kg |
