    XD-220 Spring Machine

    Introduction：
    XD-220 compression spring machine is a 2-axis spring machine consisting of wire feeding axis and cam axis. The spring machine’s two axes can act independently of synchronously from program request.

    GET A QUOTE

    Spring Machine Details



    1. XD-220 compression spring machine is a 2-axis spring machine consisting of wire feeding axis and cam axis. the spring machine’s two axes can operate independently of synchronously by command from its computer program.
    2. 5.7" control panel ,easy to operate,
    3. Cam can be moved clockwise or anti –clockwise:wire feed length can be changed while running the machine.
    4. Computer can automatically detect the temperature of the motor and slow down the running speed to protect the motor from overheating,
    5. Computer can automatically decelerate according to the timing when the probe should be used,
    6. Prodution speed can be increased or decreased at any ting running the machine,
    7. Convenient mechanization, high speed and precision.
    8. Optional accessories: Torsion device, oil seal device, pneumatic sensor device, length gauge.

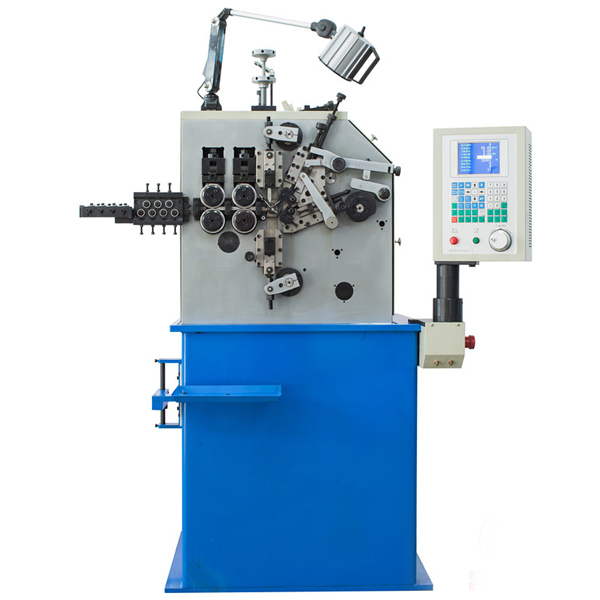

    xd220 spring coiler

    Product Range:

    This compression spring machine make various compression springs, wire coil, oil seal springs, battery springs, taper springs, double-taper springs, safe springs, clip spring as well as various simple wire forms.

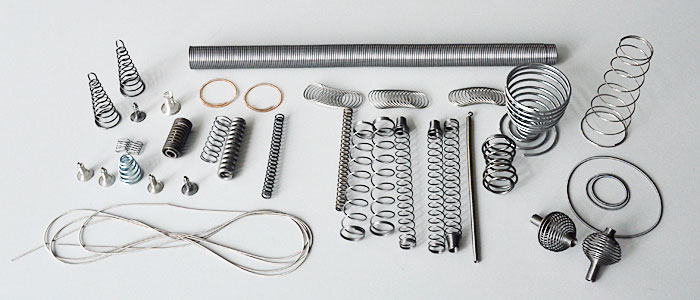

    Compression Springs 01

    Compression springs





    Technical Parameters



    Model:

    XD-220

    Wire diameter:

    φ0.5～2.0mm

    Axes:

    2-3 axes

    Maximum Outside Diameter:

    45mm

    Maximum Feeding Length:

    unlimited

    Maximum Manufacture Speed:

    300pcs/min

    Feed Speed:

    1550m/min

    Memory Number:

    1000pcs

    Wire Feed Servo Motor:

    2.7kw

    Cam Servo Motor:

    2.7kw

    Power AC:

    3-phase 380v

    Dimensions (L*D*H):

    900X850X1600mm

    Wooden Case Dimensions:

    1100x1100x1600mm

    Machine Weight:

    800kg

    Gross Weight:

    850kg



    Our foreign customer with us:
