    • XD-230 Spring Machine

    Introduction：
    XD-230 compression spring machine is a 2-axis spring machine consisting of wire feeding axis and cam axis. The spring machine's two axes can work independently or synchronously in accordance with program being set.

    GET A QUOTE

    Details

    1. XD-230 compression spring machine is a 2-axis spring machine consisting of wire feeding axis and cam axis. the spring machine’s motor are sanyo denki brand.
    2. 5.7" control panel ,easy to operate.
    3. Cam can be moved clockwisely or anti –clockwisely, wire feed length can be changed while running the machine.
    4. Computer can automatically detect the temperature of the motor and slow down the running speed to protect the motor from overheating.
    5. Computer can automatically decelerate according to the timing when the probe should be used.
    6. Prodution speed can be increased or decreased at any ting running the machine.
    7. Convenient mechanization, high speed and accuracy resulted from servo motion system.
    8. Optional accessories: Torsion device, oil seal device, spring length gauge.

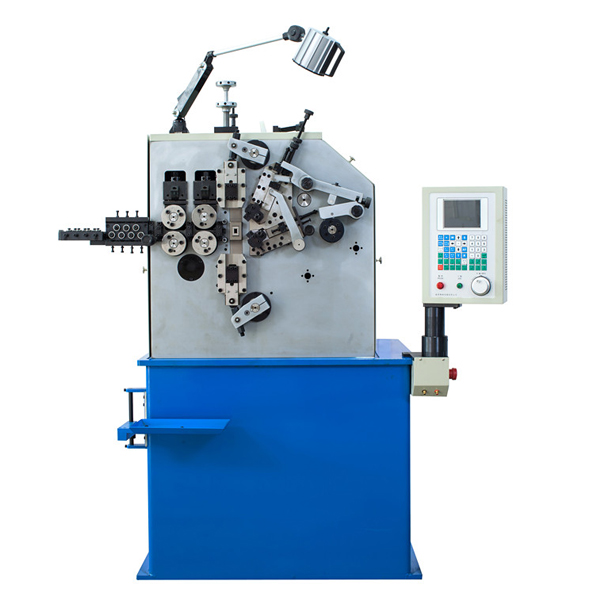

    xd230 spring machinery

    Product Range:
    This compression spring machine can make various compression springs, wire coil, oil seal springs, taper springs, double-taper springs, safe springs,  motorcycle spring, bicycle springs, clip spring as well as various simple wire forming.



    Samples:






    Technical Parameter

    Model:

    XD-230

    Wire diameter:

    φ1.0～3.0 mm

    Axes:

    2-3 axes

    Maximum Outside Diameter:

    50 mm

    Maximum Feeding Length:

    unlimited

    Maximum Manufacture Speed:

    200pcs/min

    Feed Speed

    1550m/min

    Memory Number:

    1000PCS

    Wire Feed Servo Motor:

    4.5 KW

    Cam Servo Motor:

    2.7 KW

    Power AC:

    3-Phase 220V

    Dimensions (L*D*H):

    1200X1200X1700MM

    Wooden Case Dimensions

    1300x1300x1850mm

    Machine Weight:

    1000Kg

    Gross Weights

    1050Kg
