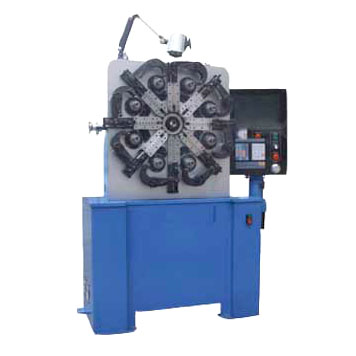

    XD-CNC10 Spring Machine

    Introduction：
    XD-CNC10 spring machine consists of cam axis, wire feeding axis, rotation core and spinner axis. the wire feeding part has two sets of rollers, The cam axis has eight sets of sliding arms.

    GET A QUOTE

    Details
    1. XD-CNC10 spring machine consists of cam axis, wire feeding axis, rotation core and spinner. The mechanical part has eight sets of sliding blocks. the winch and cam rotation have three mechanical part has eight sets of sliding blocks. the cam rotation have three mechanical action types: forming and cutting.

    2. The computerized cam rotation system can be set from 0.1-359.9°, every two wire feeding wheels constitutes of one group, totally two groups. when XD-CNC10 spring making machine wire diameter below 1.0mm,  just installed one more pair of tungsten steel wire feeding wheel.
    3. XD-CNC10 universal spring machine is equipped with 3-4 axis spring machine controller. which can save 1000 file numbers. axis location, feeding data, production speed and production output are all displayed on the screen.
    4. The spring machine rotation core system is installed on the axis. the axis can rotate leftwards and rightwards. the forming toolings are installed on the sliding arms. the cam control direction action or designated moves back and forth.
    5. Optional accessories: cutting tools, spinner axis, safety door.



    0.10mm spring machine





    Product Range:
    This CNC coiling spring machine can be used to manufacture various ultra-precision irregular springs, compression springs, pulling springs, dual-torsion spring, flat line(spiral power spring)and line molding spring etc.

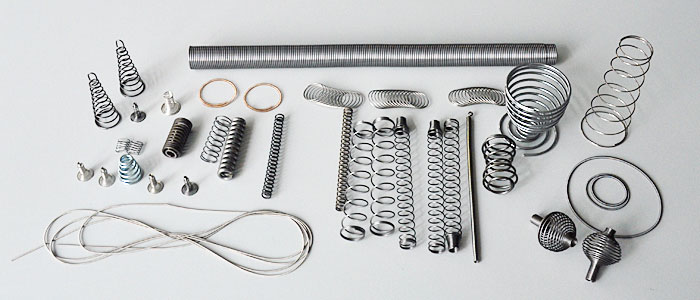

    Samples springs:

    spring former samlpes

    spring machine customer springs



    Video





    Technical Parameter:

    Model:

    XD-CNC10

    Wire diameter:

    φ0.1～1.0 mm

    Axes:

    3 axes

    Maximum Outside Diameter:

    40mm

    Maximum Feeding Length:

    unlimited

    Maximum Manufacture Speed:

    150pcs/min

    Feed Speed:

    200m/min

    Memory Number:

    1000PCS

    Wire Feed Servo Motor:

    1 KW

    Cam Servo Motor:

    1.5 KW

    Quin Servo Motor:

    0.4 KW

    Power AC:

    220V 3P 50/60Hz

    Dimensions (L*D*H):

    635X1130X1480MM

    Wooden Case Dimension:

    800x1200x1600mm

    Machine Weight:

    800Kg

    Gross Weight:

    850Kg
