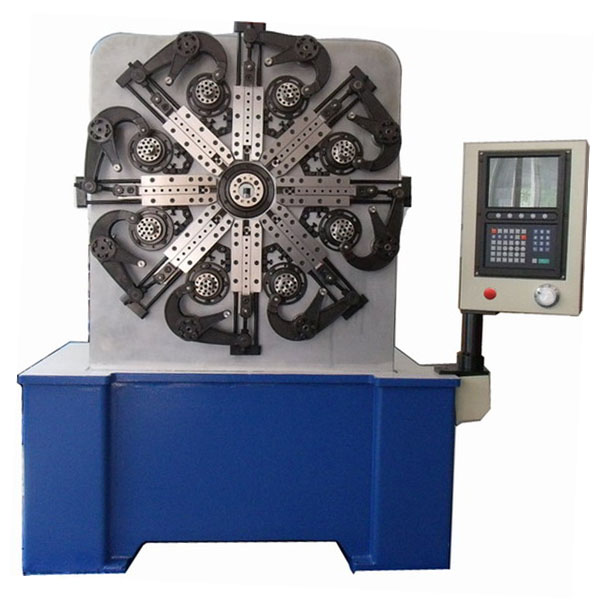

    XD-CNC35 Spring Machine

    Introduction：
    XD-CNC35 spring machine consists of cam axis, wire feeding axis, rotation core axis and spinner axis. the mechanical part has eight sets of sliding blocks.

    GET A QUOTE

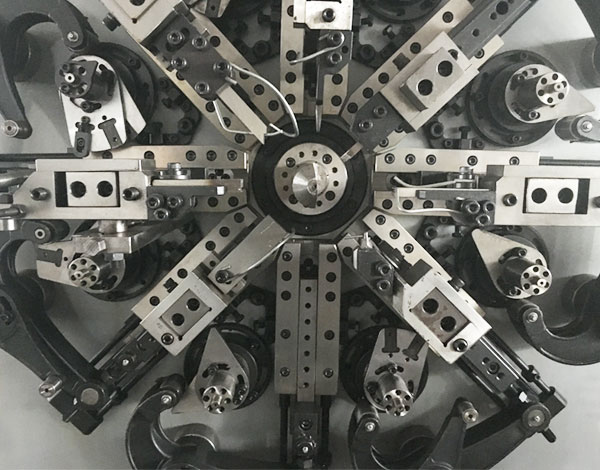

    Spring Machine Details:




    1. XD-CNC35 spring machine consists of cam axis, wire feeding axis, rotation core axis and optional spinner axis.

    2. The computerized cam rotation system can be set from 0.1-359.9°, every two wire feeding wheels constitutes of one group, totally three groups are installed.

    3. XD-CNC35 universal spring machine is equipped with XinDing spring machine controller. The controller system can save 1000 file numbers. axis location, wire feeding data, production speed and products output are displayed on the screen. The program data can be set and changed according your demand in actual operation.
    4. The spring machine rotation core system is installed on center of machine board, it rotates both  leftwards and rightwards. The rolling axis is installed on the sliding cabinet.

    5. Optional accessories: Cutting tools, rolling axis, pneumatic sensor device, optional safety door.



    Extension Spring Machine





    Product Range:
    This CNC spring machine produce various ultra-precision irregular springs, compression springs, pulling springs, dual-torsion spring, flat line(spiral power spring)and line molding spring etc.



    Video



    Sample Display

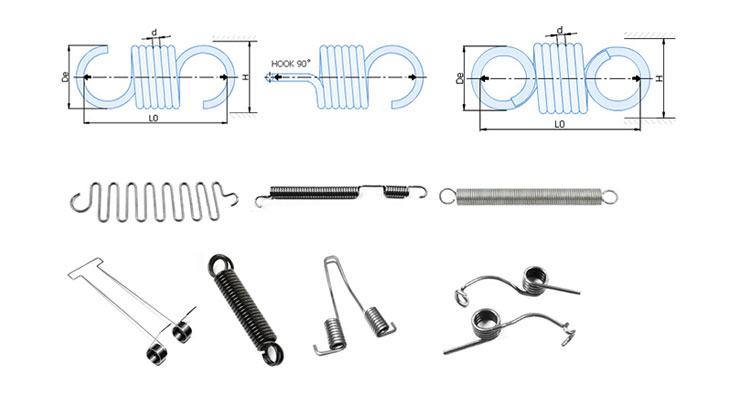

    Tension springs

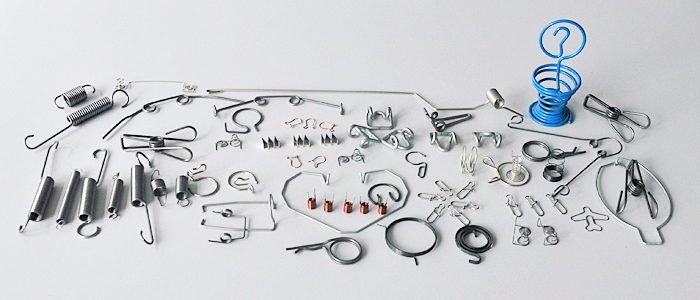

    xinding springs





    Technical Parameter

    Model:

    XD-CNC35

    Wire diameter:

    φ1.8～3.5 mm

    Axes:

    3-4 axes

    Maximum Outside Diameter:

    70mm

    Maximum Feeding Length:

    unlimited

    Maximum Manufacture Speed:

    100pcs/min

    Feed Speed:

    150m/min

    Memory Number:

    100pcs

    Wire Feed Servo Motor:

    4.5kw

    Cam Servo Motor:

    4.5kw

    Quill Servo Motor:

    1kw

    Power AC:

    3-phase 380v

    Dimensions (L*D*H):

    1700X1400X1850mm

    Wooden Case Dimensions:

    2000x1600x1200mm

    Machine Weight:

    1300kg

    Gross Weight:

    1400kg
