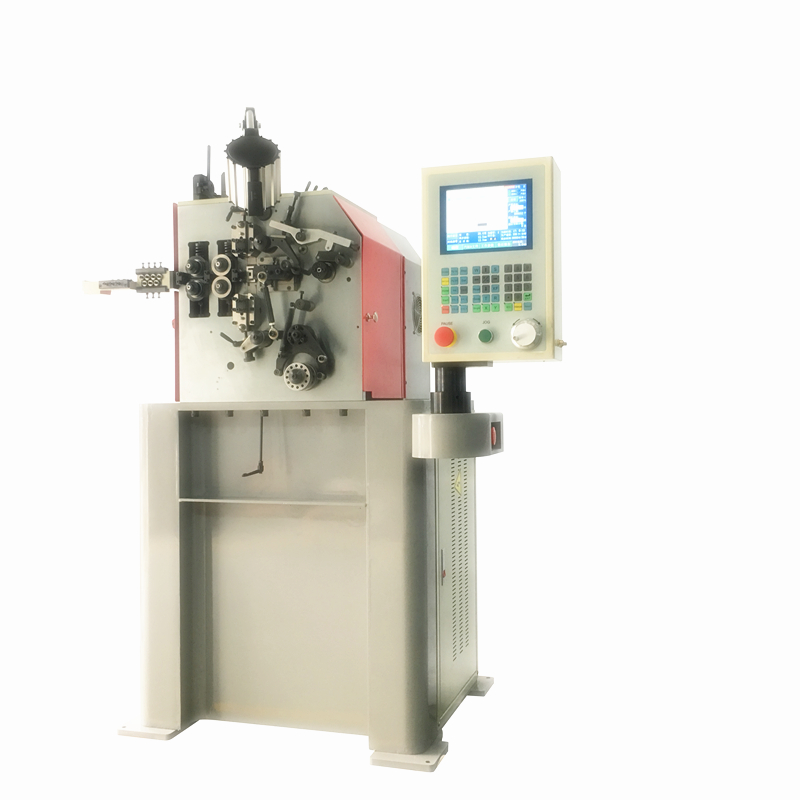

    • 0.2mm spring machine 0.2mm spring machine
    precision spring machine precision spring machine

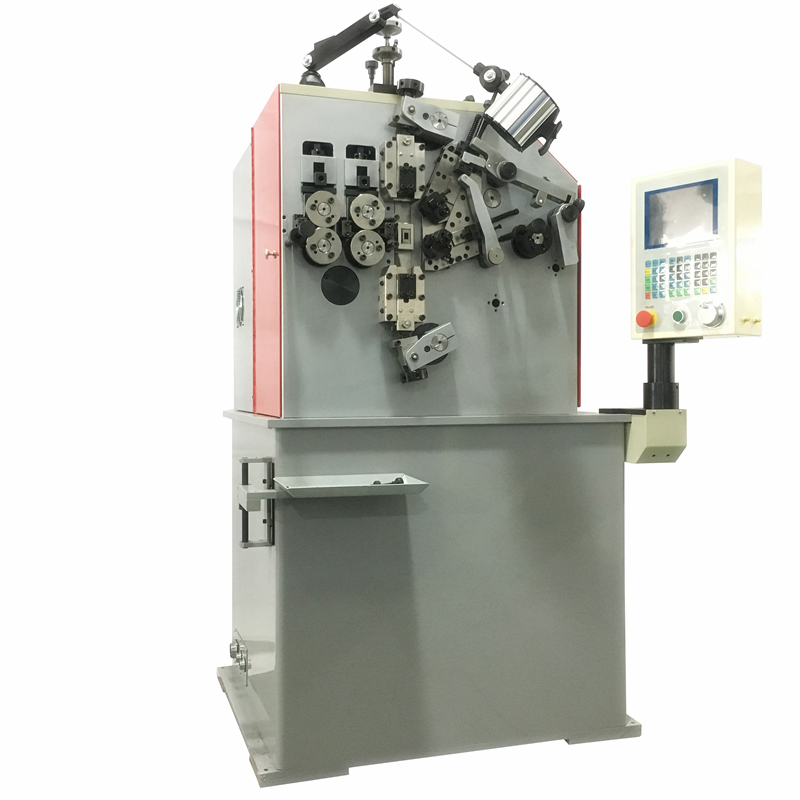

    XD-220D Spring Machine

    Introduction：
    XD-220D compression spring machine is a 2-axis spring machine consisting of wire feeding axis and cam axis. The spring machine's two axes can act independently or synchronously according to program.

    GET A QUOTE

    Product Advantage



    1. XD-220D compression spring machine is a 2-axis spring machine consisting of wire feeding axis and cam axis. The spring machine’s two axes can operate independently or synchronously by command from its computer program.
    2. 5.7" control panel ,easy to operate.
    3. Cam can be moved clockwisely or anti –clockwisely:wire feed length can be changed while running the machine.
    4. Computer can automatically detect the temperature of the motor and slow down the running speed to protect the motor from overheating.
    5. Computer can automatically decelerate according to the timing when the probe should be used.
    6. Prodution speed can be increased or decreased at any ting running the machine.
    7. Convenient mechanism, high speed and precision.
    8. Optional accessories: torsion spring attachment device, pneumatic sensor device, length gauge.

    XD-220D compression Spring Machine

    Technical Parameters



    Model:

    XD-220D

    Wire diameter:

    φ0.15～2.0  mm

    Axes:

    2 axes

    Maximum Outside Diameter:

    45 mm

    Maximum Feeding Length:

    unlimited

    Maximum Manufacture Speed:

    300pcs/min

    Feed Speed:

    1550m/min

    Memory Number:

    1000PCS

    Wire Feed Servo Motor:

    2.7 KW

    Cam Servo Motor:

    2.7 KW

    Power AC:

    3-Phase 220V

    Dimensions (L*D*H):

    900X850X1600MM

    Wooden Case Dimension:

    1100x1100x1600mm

    Machine Weight:

    800Kg

    Gross Weight:

    850Kg





    Sample Display



    This CNC spring machine produce various ultra-precision irregular springs, compression springs, pulling springs, dual-torsion spring, flat line(spiral power spring)and line molding spring etc.

    Video



    Product Details



    1. Use servo control system to save energy 30-50 %.
    2. repeatable positioning accuracy up to±0.01mm.
    3. Low failure rate,automatic alarm and fault indication,one-button reset function.
    4. Adopting an integral frame structure, high strength, low distortion and durability.
    5. Innovative design of great flexibility.
    6. Patented and innovative time-line-basis spring program software.
    spring machine advantage
    Use of famous brand components, ensures the stability of spring forming control system.
