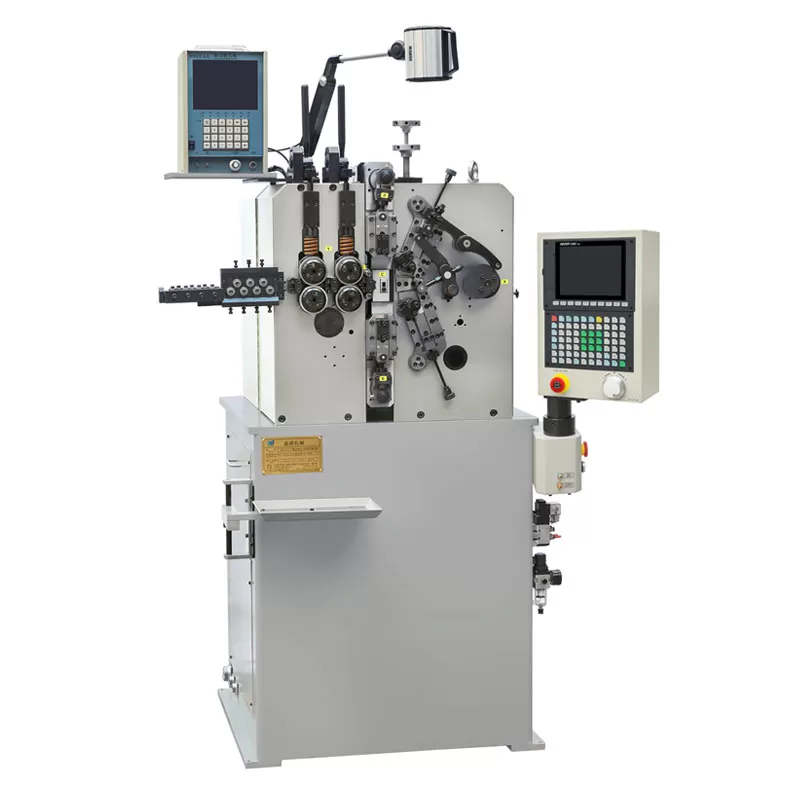

    XD-820 Compression Spring Machine

    Introduction：
    Model: XD-820
    Wire Dia.: 0.5-2.0mm

    XD-820 compression spring machine is eight axis spring coiler, which applied in wire diameter 0.5-2.0mm, for all type of precise compression spring and some torsional springs.

    The machine totally equipped with eight servo motors, they are, one wire feed motor, two cutting motors, two OD control motors, two arbor control motors, one pitch control motor.

    Application range: such as coil springs( equal pitch or unequal one), neutral and concave springs, barrel shape springs, tower shape spring, battery spring, watch spring, toy spring, support spring, tube spring, dredge spring and single torsion springs ect.

    GET A QUOTE

    Product Advantages

    XD-820 Compression Spring Machine
    XD-820 Compression Spring Machine
    ● This compression spring machine adopts computer digital control. Any one of the eight axis can move independently, but also can coordinate several axis linkage. In the production process, the machine has precise transmission, smooth movement, wear resistance and long life.
    ● The wire feeding axis is driven by the imported servo motor, which can realize high-speed and high-precision wire feeding of any length.
    ● The upper and lower cutting axis is controlled by two servomotors to cut off the slider's fast movement, realizing the cutting and torsional cutting.
    ● The pitch axis is driven by servo motor, and the high precision rolling screw is used to make the pitch claw move, so as to ensure the height accuracy of the pitch.
    ● The cam axis drives reducing diameter slider through the cam and the plane lever to complete reducing diameter. The lifting of the quill axis is controlled by the motor, which is convenient and labor-saving.

    Technical Parameter:

    Model XD-820
    Wire Diameter 0.5-2.0mm
    O.D ￠45mm
    Production Rate 300pcs/min
    Feed Length unlimited
    Wire Feed 2.7kw
    Cutter 1kw*2
    OD Axis 1kw*2
    Pitch 1kw
    Arbor Back-And-Forth 0.4kw
    Arbor Up-And-Down 0.4kw
    Computer Display Chinese/English
    Machine Dimension 110*900*165 cm
    Machine Weight 1100kgs
    Power 380v 3p 50/60hz


    Application

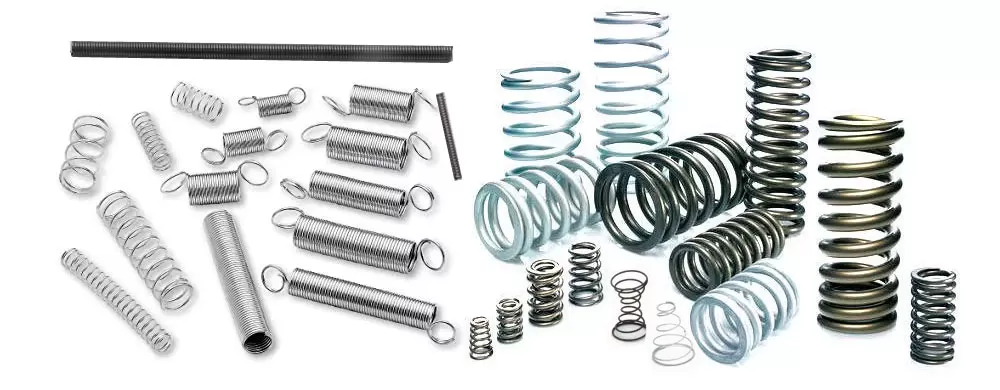

    XD-820 compression spring machine maily application in coil springs( equal pitch or unequal one), neutral and concave springs, barrel shape springs, tower shape spring, battery spring, watch spring, toy spring, support spring, tube spring, dredge spring and single torsion springs ect.
    XD-820 Compression Spring Machine Application
