Product Advantage

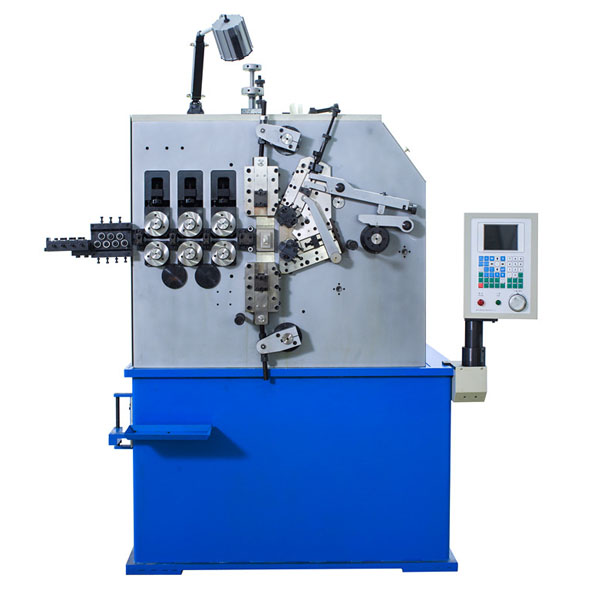

1. XD-250 compression spring machine is a 2-axis spring machine consisting of wire feeding axis and cam axis. the spring machine’s two axes can act independently or synchronously. XD-250 also have an option of a pitch axis installment to upgrade as a 3 axis spring coiler.
2. 5.7" control panel ,easy to operate.
3. Cam can be moved clockwisely or anti –clockwisely, wire feed length and speed is up to user's adjustment.
4. Computer can automatically detect the temperature of the motor and slow down the running speed to protect the motor from overheating.
5. Computer can automatically decelerate according to the timing when the probe should be used.
6. Prodution speed can be increased or decreased at any time of running the machine.
7. Convenient mechanism,high speed and precision.
2. 5.7" control panel ,easy to operate.
3. Cam can be moved clockwisely or anti –clockwisely, wire feed length and speed is up to user's adjustment.
4. Computer can automatically detect the temperature of the motor and slow down the running speed to protect the motor from overheating.
5. Computer can automatically decelerate according to the timing when the probe should be used.
6. Prodution speed can be increased or decreased at any time of running the machine.
7. Convenient mechanism,high speed and precision.
8. Optional accessories: Torsion device, spring length gauge.
Technical Parameters
| Model: |
XD-250 |
|
Wire diameter: |
φ2.0～5.0 mm |
|
Axes: |
2-3 axes |
|
Maximum Outside Diameter: |
80mm |
|
Maximum Feeding Length: |
unlimited |
|
Maximum Manufacture Speed: |
100pcs/min |
|
Feed Speed: |
54m/min |
|
Memory Number: |
1000pcs |
|
Wire Feed Servo Motor: |
7.5kw |
|
Cam Servo Motor: |
7.5kw |
|
Power AC: |
3-Phase 380v |
|
Dimension (L*D*H): |
1800X1300X2000mm |
|
Wooden Case Dimension: |
2240x1820x2240mm |
|
Machine Weight: |
2300Kg |
|
Gross Weight: |
2700Kg |
Sample Display
This CNC spring machine produce various ultra-precision irregular springs, 0.5-2.0 mm wire diameter spring forming, compression springs, pulling springs, dual-torsion spring, flat line(spiral power spring)and line molding spring etc.
Video
Product Details
1. Use servo control system to save energy 30-50 %.
2. repeatable positioning accuracy up to±0.01mm.
3. Low failure rate,automatic alarm and fault indication,one-button reset function.
4. Adopting an integral frame structure, high strength, low distortion and durability.
5. Innovative design of great flexibility.
6. Patented and innovative time-line-basis spring program software.
Use of famous brand components, ensures the stability of spring forming control system.
2. repeatable positioning accuracy up to±0.01mm.
3. Low failure rate,automatic alarm and fault indication,one-button reset function.
4. Adopting an integral frame structure, high strength, low distortion and durability.
5. Innovative design of great flexibility.
6. Patented and innovative time-line-basis spring program software.
Use of famous brand components, ensures the stability of spring forming control system.
