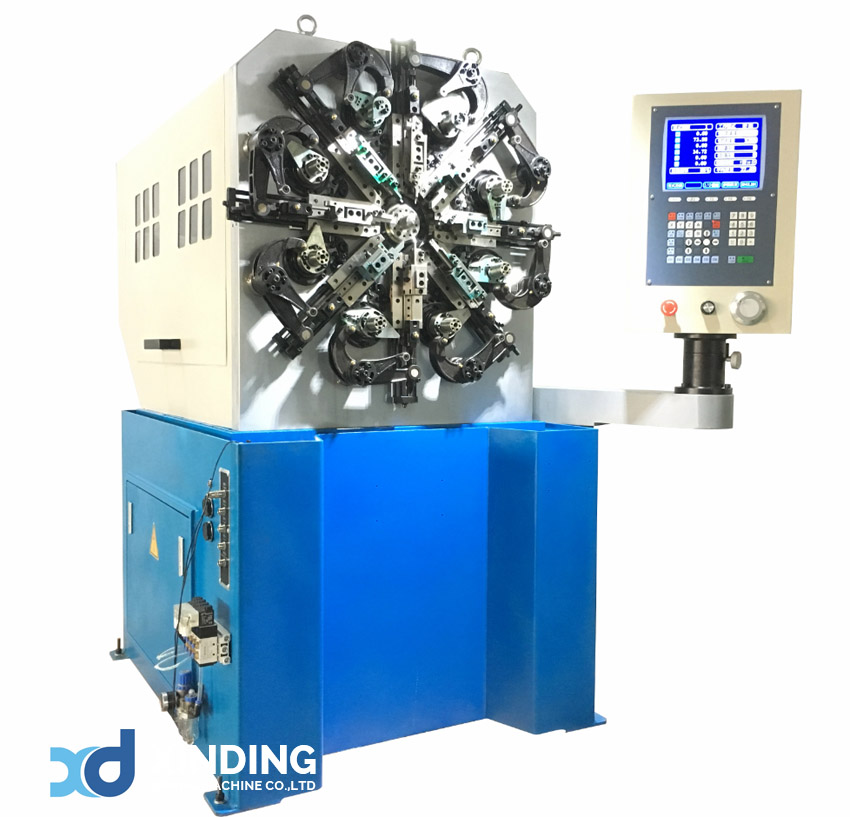

    XD-CNC20W Spring Machine

    Introduction：
    Xinding spring machinery, Springs machine, XD-CNC20W Spring Machine, 0.3-2.5mm springs making.

    GET A QUOTE

    Product Advantage



    1. XD-CNC20W spring machine consists of cam axis, wire feeding axis, wire rotation, quill and spinner axis. mechanical part has eight sets of sliding blocks.

    2. Computerized cam rotation system can be set from 0.1-359.9°, every two wire feeding wheels constitutes of one group, totally two groups.
    3. XD-CNC20W  cnc spring machine is equipped with XinDing 5 axis spring machine controller. which can save 1000 files, axis location, feeding data.wire rotation position, production speed and production output are displayed on the screen.

    4. With wire rotation, easier to control the natural force value of wire material.


    cnc20 spring machine



    Technical Parameters



    Model:

    XD-CNC20W

    Wire diameter:

    φ0.3～2.5 mm

    Axes:

    5 axes

    Maximum Outside Diameter:

    ￠50mm

    Maximum Feeding Length:

    unlimited

    Maximum Manufacture Speed:

    100pcs/min

    Feed Speed:

    200m/min

    Memory Number:

    1000pcs

    Wire Feed Servo Motor:

    2.7kw

    Cam Servo Motor:

    2.7kw

    Quill Servo Motor:

    1kw
    Wire Rotation Motor: 2.7kw
    Spinner Motor: 0.4kw

    Power AC:

    3-phase 380v

    Dimensions (L*D*H):

    1400X1000X1700mm

    Wooden Case Dimension:

    1700x1200x1950mm

    Machine Weight:

    1200kg

    Gross Weight:

    1500kg





    Sample Display

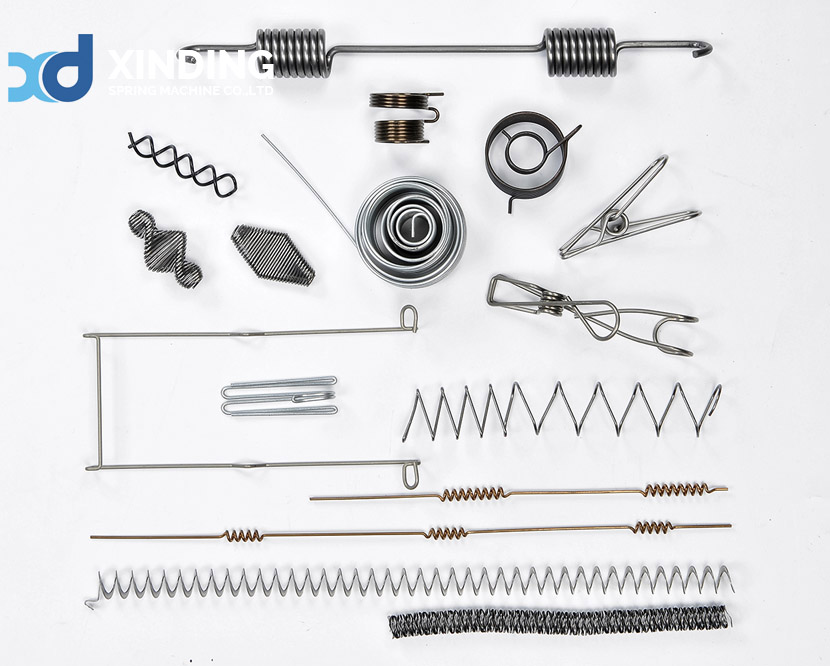

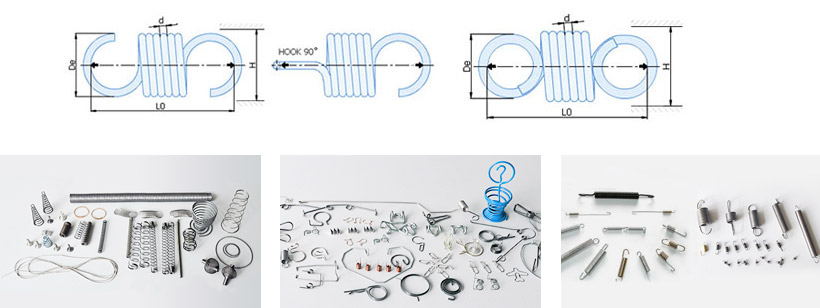

    This CNC spring machine produce various ultra-precision irregular springs, compression springs, pulling springs, dual-torsion spring, flat line(spiral power spring)and line molding spring etc.
    XD Spring Forming Machine Samples Spring Forming Machine Samples

    Video





    Product Details



    1. Use servo control system to save energy 30-50 %.
    2. repeatable positioning accuracy up to±0.01mm.
    3. Low failure rate,automatic alarm and fault indication,one-button reset function.
    4. Adopting an integral frame structure, high strength, low distortion and durability.
    5. Innovative design of great flexibility.
    6. Patented and innovative time-line-basis spring program software.

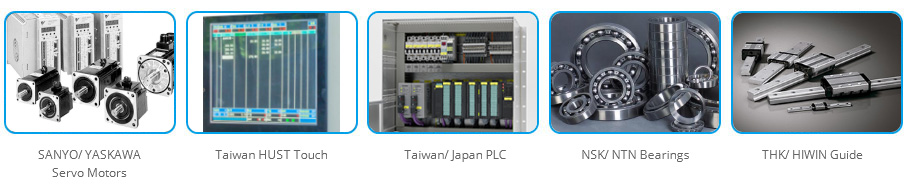

    Use of famous brand components, ensures the stability of spring forming control system.
