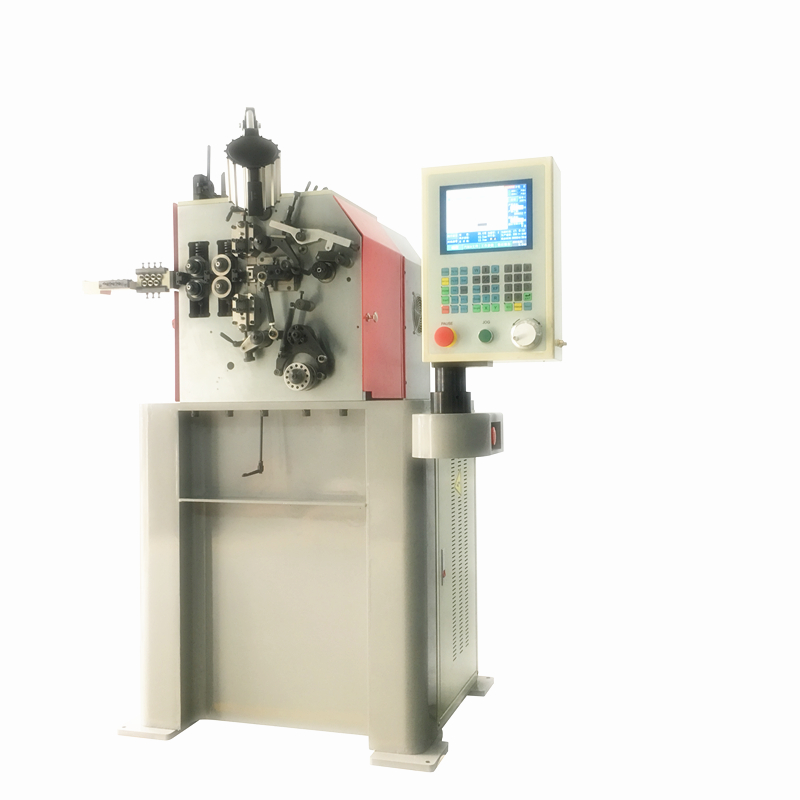

    XD-212D Spring Machine

    Introduction：
    XD-212D Spring Machine, convenient mechanical system, high speed and precision.

    GET A QUOTE

    Product Advantage



    1. XD-212 compression spring machine is a 2-axis spring machine consisting of wire feeding axis and cam axis. each action from the machine are controlled by its CNC center.

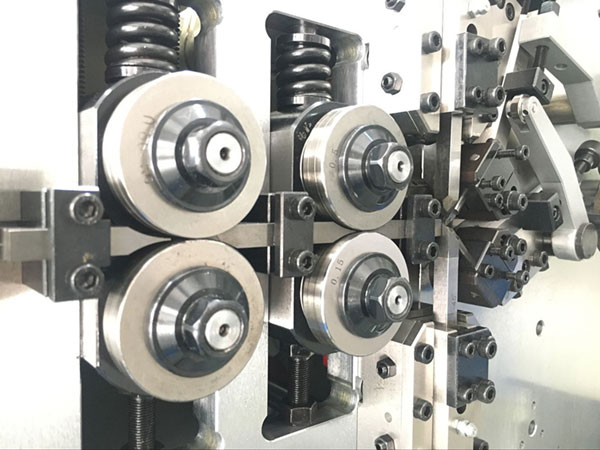

    2. The compression spring machine pitch, outside diameter and cutter are commanded by cam motor. while wire feeding is controlled by an independent motor.
    3. The spring machine cutter can be adjusted inside and outside of the machine cabinet easily and flexibly.
    4. Servo motion system and servo drive controlled,  5.7" control panel, easy to operate.
    5. Cam can be moved clockwisely or anti-clockwisely, wire feed length can be change while running the machine.

    6. Computer automatically detect temperature of  the motor and slow down running speed to protect the motor from overheating.

    7. Computer automatically decelerate according to the timing when the probe should be used.
    8. Production speed can be increased or decreased at any time running the machine.
    9. Optional accessories: torsion spring attachment device, oil seal device, pneumatic sensor device, spring length gauge.

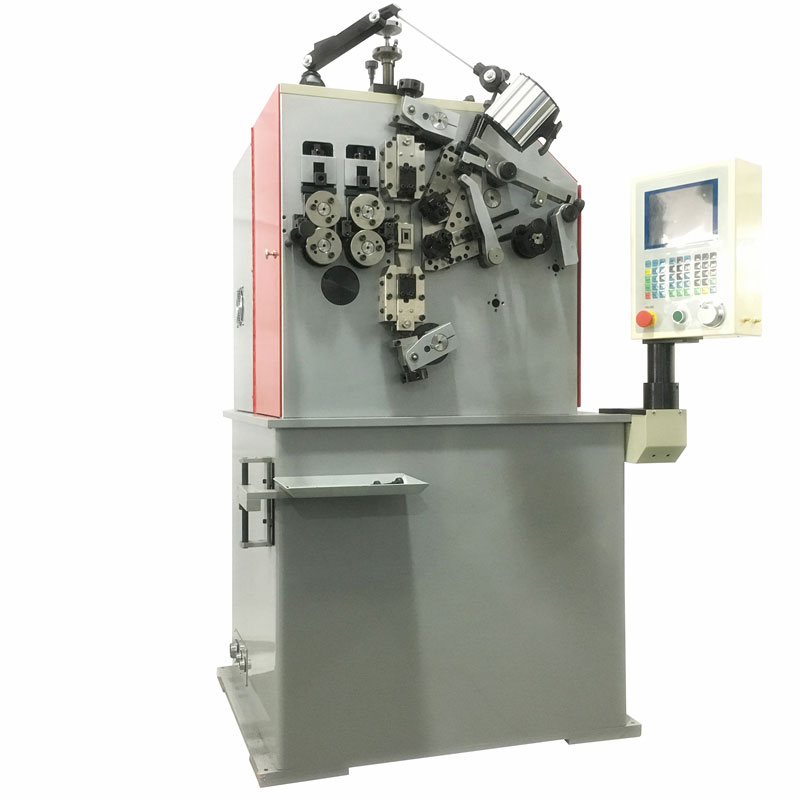

    XD212D spring machine

    Technical Parameters



    Model: XD-212D
    Wire diameter: φ0.20～1.2mm
    Axes: 2 axes
    Maximum Outside Diameter: 30mm
    Maximum Feeding Length: unlimited
    Maximum Manufacture Speed: 550pcs/min
    Feed Speed: 300m/min
    Memory Number: 1000PCS
    Wire Feed Servo Motor: 1.0KW
    Cam Servo Motor: 1.0KW
    Power AC: 3-Phase 220V
    Dimensions (L*D*H): 850X750X1300MM
    Wooden Case Dimension: 1000x1050x1550mm
    Machine Weight: 500Kg
    Gross Weight: 550Kg





    Sample Display



    This CNC spring machine produce various ultra-precision irregular springs, compression springs, pulling springs, dual-torsion spring, flat line(spiral power spring)and line molding spring etc. spring mahcine samples

    Video



    Product Details



    1. Use servo control system to save energy 30-50 %.
    2. repeatable positioning accuracy up to±0.01mm.
    3. Low failure rate,automatic alarm and fault indication,one-button reset function.
    4. Adopting an integral frame structure, high strength, low distortion and durability.
    5. Innovative design of great flexibility.
    6. Patented and innovative time-line-basis spring program software.

    Use of famous brand components, ensures the stability of spring forming control system.
