Product Advantage

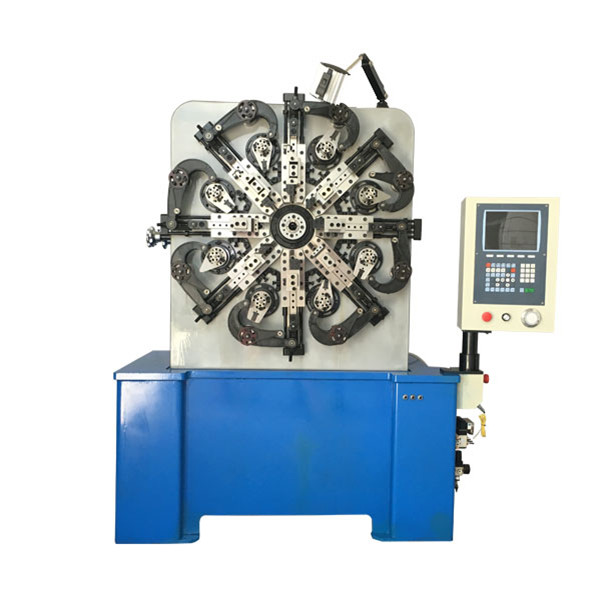

1. XD-CNC35 spring machine consists of cam axis, wire feeding axis, rotation core axis and optional spinner axis.

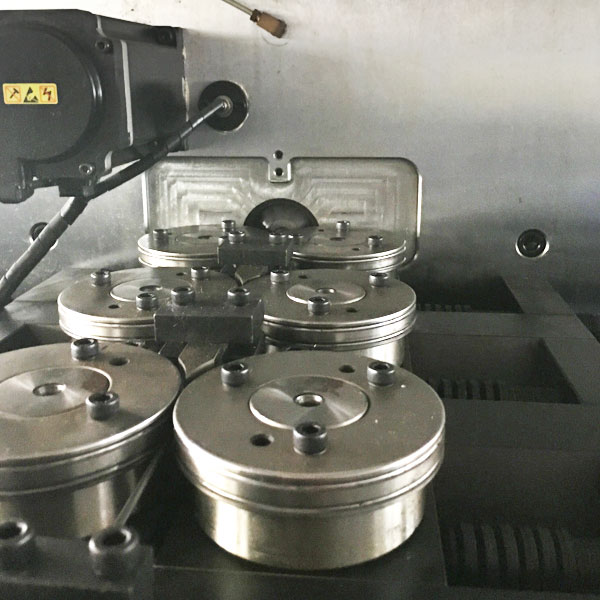

2. The computerized cam rotation system can be set from 0.1-359.9°, every two wire feeding wheels constitutes of one group, totally three groups are installed.
3. XD-CNC35 universal spring machine is equipped with Xinding spring machine controller. The controller system can save 1000 file numbers. axis location, wire feeding data, production speed and products output are displayed on the screen. The program data can be set and changed according your demand in actual operation.
4. The spring machine rotation core system is installed on center of machine board, it rotates both leftwards and rightwards. The rolling axis is installed on the sliding cabinet.
5. Optional accessories: cutting tools, spinner axis, pneumatic sensor device, optional safety door.
Technical Parameters
| Model: |
XD-CNC35D |
|
Wire diameter: |
φ1.8～3.5 mm |
|
Axes: |
3-4 axes |
|
Maximum Outside Diameter: |
70mm |
|
Maximum Feeding Length: |
unlimited |
|
Maximum Manufacture Speed: |
100pcs/min |
|
Feed Speed: |
150m/min |
|
Memory Number: |
1000pcs |
|
Wire Feed Servo Motor: |
5.5kw |
|
Cam Servo Motor: |
5.5kw |
|
Quin Servo Motor: |
1kw |
|
Power AC: |
3-phase 380v |
|
Dimension (L*D*H): |
1800X1400X800mm |
|
Wooden Case Dimension: |
2000x1600x1200mm |
|
Machine Weight: |
1300kg |
|
Gross Weight: |
1400kg |

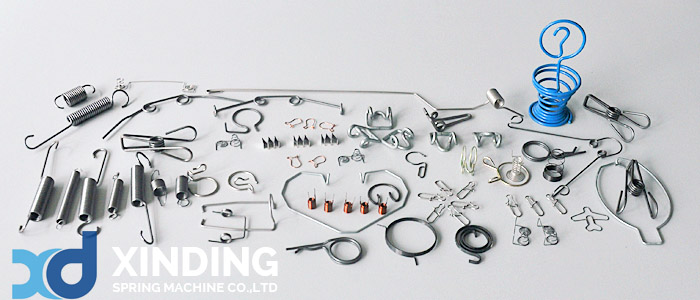

Sample Display
Video
Product Details
2. repeatable positioning accuracy up to±0.01mm.
3. Low failure rate,automatic alarm and fault indication,one-button reset function.
4. Adopting an integral frame structure, high strength, low distortion and durability.
5. Innovative design of great flexibility.
6. Patented and innovative time-line-basis spring program software.

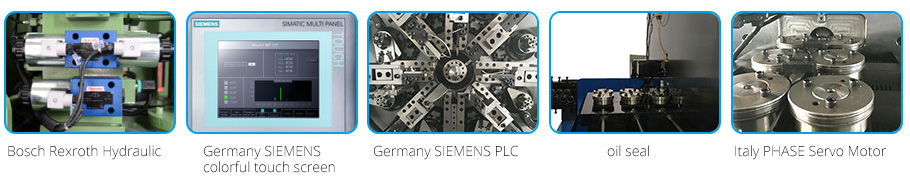

Use of famous brand components, ensures the stability of spring forming control system.
